VDC-M 1.2 ディテクタ (ディスプレイ圧縮用 IP)

BTREE VDC-M1.2検出器IPコアはVESAVDC-M 1.2（ディスプレイ圧縮）に完全に準拠しています。

その視覚的な可逆圧縮の容量は最大5：1（6bpp）です。

• Specification & Performance
  - VESA Display Compression-M (VDC-M) 1.2 Compliant
  - 8, 10, or 12 bits per Color Support
  - 4:4:4 RGB Native Decoding
  - 4:4:4, 4:2:2, or 4:2:0 YCbCr Native Decoding
  - Support All VDC-M Encoding Mechanisms
    ◦ BP, BP Skip, MPP, MPP Fallback, and Transform
    ◦ Flatness Detection and Signalling
  - Configurable Maximum Display Resolution of Up to 16K x 16K
    ◦ Typical 4K (4096x2160), 5K UHD+, and 8K UHD Supported
  - Frame-by-Frame compression

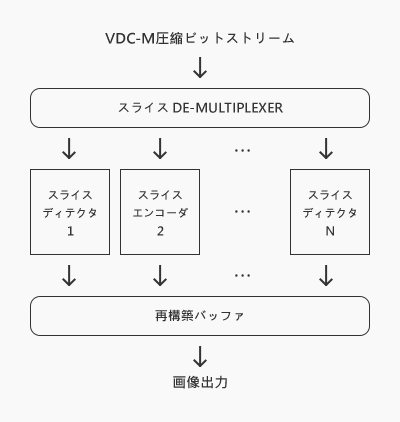

  - Parameterizable Number of Parallel Slice Decoder Instances (1,2,3,4) to
    Adapt to the Capability of the Technology and Target Display Resolutions Used
  - Supports Logical Slice Decoding (Soft Slice) in Each Physical Decoder (Hard Slice)
  - Pixel Throughput of 2 Pixels per Clock per Hard Slice Decoder
