Specification & Performance
- VESA Display Compression-M (VDC-M) 1.2 Compliant
- 8, 10, or 12 bits per Color Support
- 4:4:4 RGB Native Encoding
- 4:4:4, 4:2:2, or 4:2:0 YCbCr Native Encoding
- Support All VDC-M Encoding Mechanisms
◦ BP, BP Skip, MPP, MPP Fallback, and Transform
◦ Flatness Detection and Signalling
- Configurable Maximum Display Resolution of Up to 16K x 16K
◦ Typical 4K (4096x2160), 5K UHD+, and 8K UHD Supported
- Configurable Compressed bit rate, in Increments of 1/16 bpp
- Frame-by-Frame Compression

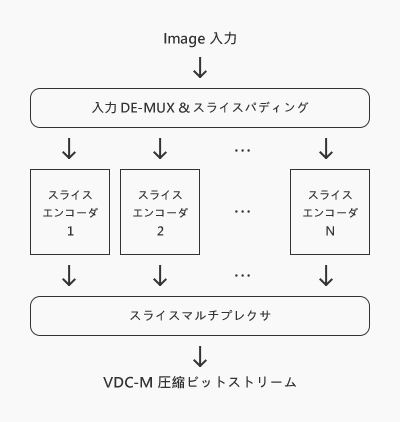

- Parameterizable Number of Parallel Slice Encoder Instances (1,2,3,…n) to
Adapt to the Capability of the Technology and Target Display Resolutions Used
- Supports Logical Slice Encoding (Soft Slice) in Each Physical Encoder (Hard Slice)
- Pixel Throughput of 2 Pixels per Clock per Hard Slice Encoder
