カメラ ISP IP

センサ入力

HDR

(PINE)

ISP IP

(METASEQUOIA / ZELKOVA)

3DNR

(VINI / AMUR)

LDC

(GINKGO)

出力



センサ入力
WDR

(PINE)

ISP IP

(METASEQUOIA / ZELKOVA)

3DNR

(VINI / AMUR)

出力

3DNR  (13M, MA/ME基盤3DNR)

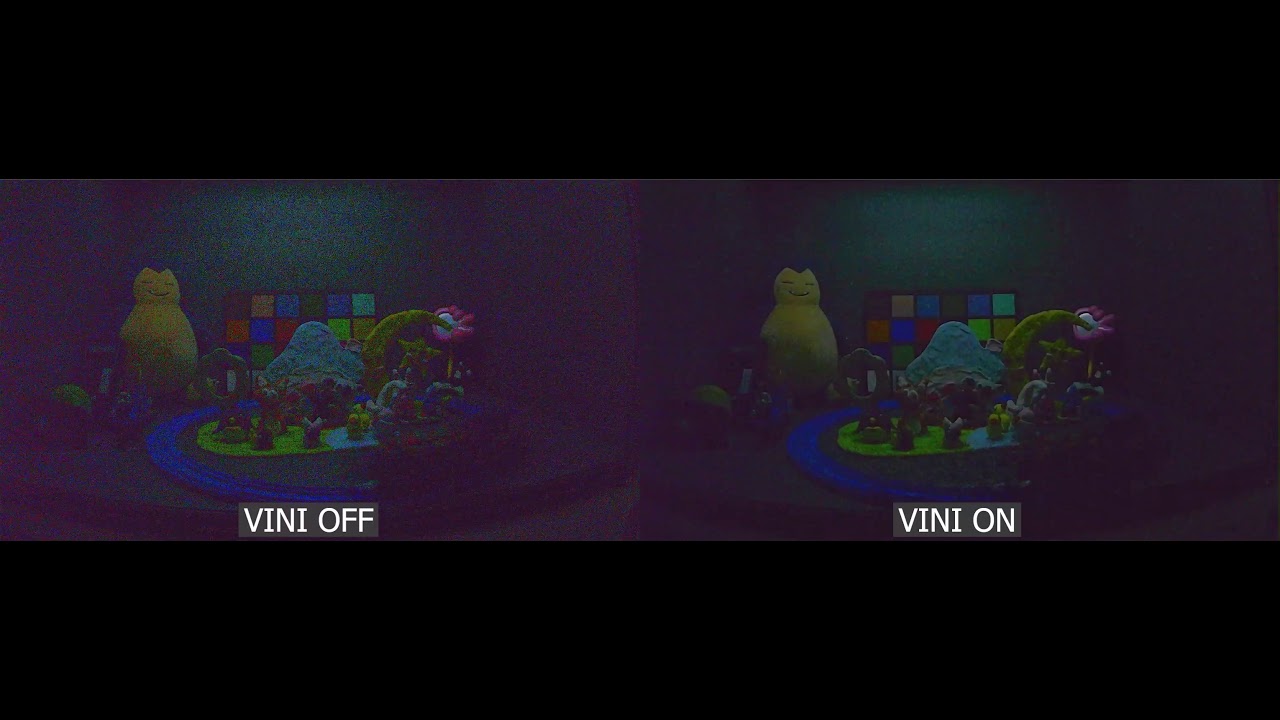

VINI
(3DNR)

8MP@30fps

MA 基盤 3DNR

VINIは、低いゲートサイズとメモリ使用量で高性能を実現します。VINIはモーションアダプティブ(MA)方式を使用して、デジタル画像の劣化を抑制します。ゴーストを最小限に抑えるために、アンチゴーストブロックがVINIに含まれています。VINIは、リアルタイム処理用のデジタルビデオポート(DVP)およびAXIインターフェイスを提供します。VINIは単一のIPで使用でき、BTREEの他のISPIPと統合することもできます。

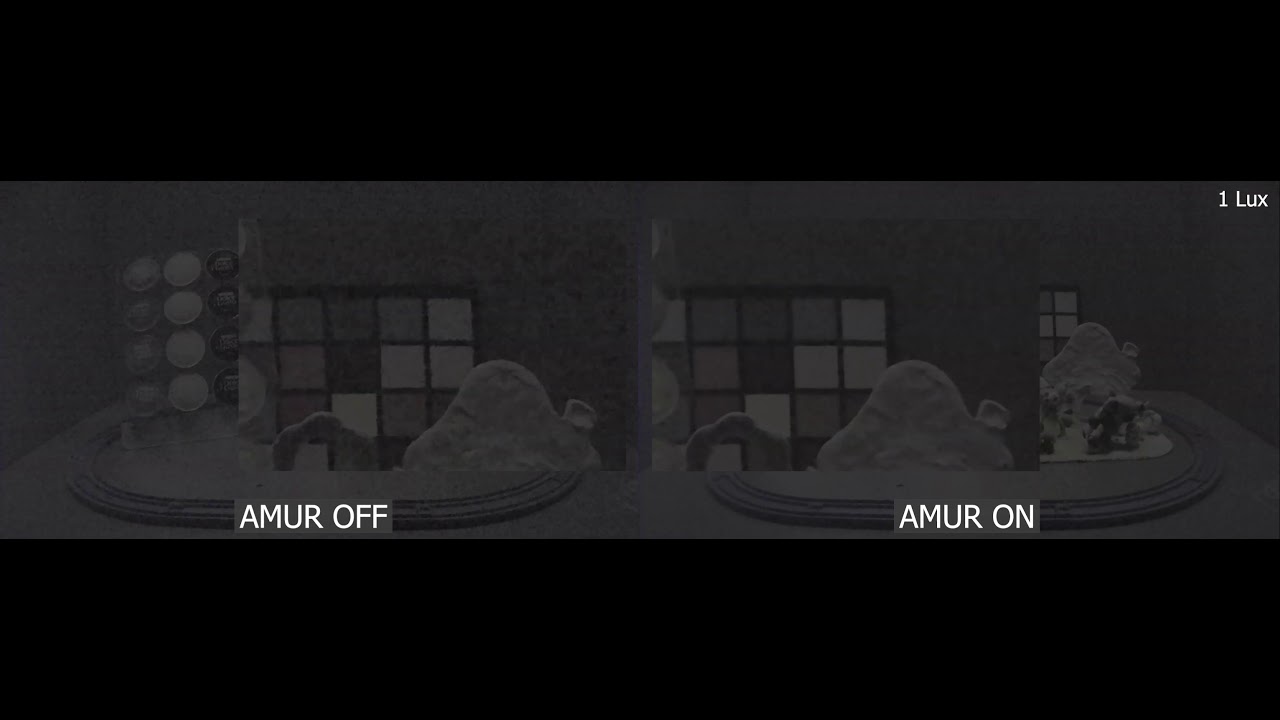

AMUR
(3DNR)

8MP@30fps

ME 基盤 3DNR

AMURは、低輝度環境向けに最適化されています。AMURは、動き推定(ME)法を使用して、ゴーストを抑制します。AMURは、リアルタイム処理用のデジタルビデオポート(DVP)およびAXIインターフェイスを提供します。AMURは単一のIPで使用でき、BTREEの他のISPIPと統合することもできます。.

* チューニングソリューション(イメージ(バイエル)ローダー、ISPボード、ツールなど)は別途ご購入いただけます。

VINI  (13M, MA基盤3DNR)

  • 仕様 & 性能
    最大解像度
      ◦ 13MP@30fps
    入力 formats
      ◦ YUV422  8 bit
    出力 formats
      ◦ DVP : YUV422 - 8 bit
      ◦
    AXI : YUV420, YUV422 - 8 bit
  • 適用
    自動車
    - 監視カメラ
    - その他のカメラ
  • 長所
    高性能
    - 小さなゲートサイズ
    低H/Wコスト
    省電力に最適化

  • Specification & Performance
    - Maximum Resolution
      ◦ 13MP@30fps
    - Input formats
      ◦ YUV422 – 8 bit

    - Output formats
      ◦ DVP : YUV422 - 8 bit
      ◦ AXI : YUV420, YUV422 - 8 bit

    - Interface
      ◦ ARM® AMBA APB BUS interface for VINI ISP system control
    ◦ ARM® AMBA AXI Interface for data
      ◦ Direct connection to sensor stream data (DVP)
  • Features
    - Motion Adaptive Method (MA)
    - Temporal Noise Reduction Using 2 Frames of Images
      ◦ To Produce High Quality Image in Low-Light Environment
    - Anti-Ghost
    - Support Real-Time De-Noising Output
    - Low Power Consumption
    - Very Small Gate Counts as to be built-in to ISP

AMUR  (13M, ME基盤3DNR)

  • 仕様 & 性能
    最大解像度
      ◦ 13MP@30fps

    - 入力 formats

      ◦ YUV422 – 8 bit

    - 出力 formats

      ◦ DVP : YUV422 - 8 bit

      ◦ AXI : YUV420, YUV422 - 8 bits

  • 適用
    自動車
    - 監視カメラ
    - その他のカメラ
  • 長所
    高性能

               - Strong on Ghost

               - 低照度環境向けに最適化

                - 小さなゲートサイズ

                 - 低H/Wコスト
                 -
省電力に最適化

  • Specification & Performance
    - Maximum Resolution
      ◦ 13MP@30fps
    - Input formats
      ◦ YUV422 – 8 bit
    - Output formats
      ◦ DVP : YUV422 - 8 bit
      ◦ AXI : YUV420, YUV422 - 8 bit

    - Interface
      ◦ ARM® AMBA APB BUS interface for AMUR ISP system control
      ◦ ARM® AMBA AXI Interface for data
      ◦ Direct connection to sensor stream data (DVP)
  • Features
    - Motion Estimation Method (ME)
    - Temporal Noise Reduction Using Continuous Accumulative Frames of Images
      ◦ To Produce Excellent Quality Image in Any Condition
    - Anti-Ghost & Anti-Motion Blur
    - 64x64 Motion Map Used
    - Support Real-Time De-Noising Output
    - Low Power Consumption
    - Efficient Gate Size and Memory Usage
