DSCALE  (Down scaler)

DSCALEは入力画像を指定された出力サイズに縮小するIPです。

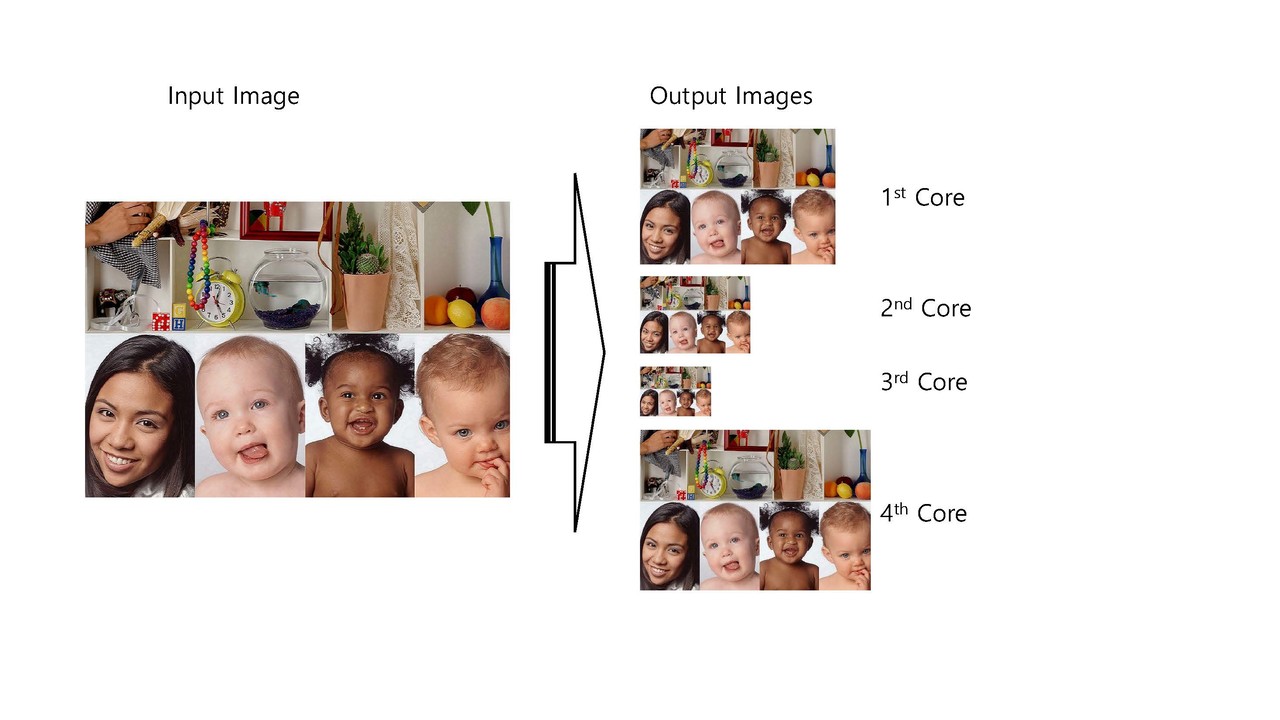

DSCALEは1つの入力画像を受け取り、4つの異なる縮小画像を同時に処理することができます。
DSCALEは基本アルゴリズムとして多項式補間(Polynomial Interpolation、PI)アルゴリズムを使用し、さらに帯域幅を削減しながら高品質の画像を得るために他の方法も使用されます。

チューニングソリューション(イメージ(バイエル)ローダー、ISPボード、ツールなど)は別途ご購入いただけます。

MAPLE  (5M, Lens Distortion Correction)

DSCALE  (Down Scaler)

  • 仕様 & 性能
    - Maximum Input Resolution

      ◦ 4096x4096

    - Maximum Output Resolution

      ◦ 4096x4096 ~ 128x128

    - Scaling Ratio

      ◦ 1.0x ~ 1/32x

    - Simultaneous Output

      ◦ Up to 4 different sizes

    - Data Interface

      ◦ DVP / AXI

    - Data Type

      ◦ RGB/YUV444, YUV422

    - Processing Bit Depth

       ◦ 8 bit

    - Interpolation Method

       ◦ Polynomial Interpolation

    - Windowing Control

    - Low Pass Filter

    - 5 Line Buffer Memory


  • 適用
    - Automotive
    - Surveillance camera
    - Other cameras

  • 利点

    - Small Gate Count

    - Low Band width

    - Optimized for Power Saving
